Construction Telescopic Boom Mobile Crane SQ3.2SK2Q With 8.4T.M Rated Lifting Moment

Name: Construction Telescopic Boom Mobile Crane SQ32SK2Q With 84TM Rated Lifting Moment
Brand: LIYUE
Price: 7 USD

Wholesale Construction Telescopic Boom Mobile Crane SQ3.2SK2Q With 8.4T.M Rated Lifting Moment from china suppliers

Place of Origin : Henan, China

Brand Name : LIYUE

Price : $7,000.00/units >=1 units

Feature : TRUCK CRANE

Showroom Location : Bangladesh

Condition : New

Application : Construction

Rated Loading Capacity : 4000kg

Rated Lifting Moment : 8.4T.M

Max. Lifting Height : 11.5m

Span : 1989-3329mm

Warranty : 1 Year

Hydraulic Cylinder Brand : Bosch Rexroth

Hydraulic Pump Brand : Kawasaki

Hydraulic Valve Brand : KYB

Engine Brand : CHANGCHAI

UNIQUE SELLING POINT : High operating efficiency

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Bearing

Weight (KG) : 1500 kg

Product name : Truck Mounted Crane

Hydraulic parts : Telescopic Boom Mobile Crane Made

Crane type : Truck Crane Mobile Crane Hydraulic Crane

Brand : OEM Service

Origin : 100% China

Capacity : 4 Ton Truck Mounted Crane

Boom type : Hydraulic Straight Arm

Chassis brand : DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman

Color : Customer Requirements

Emission standard : Euro 1/2/3/4/5

Contact Now

Product Specs

Telescopic Boom Mobile Crane SQ3.2SK2Q With 8.4T.M Rated Lifting Moment In Kazakhstan

NOTE: The price is for crane part only.

Construction Telescopic Boom Mobile Crane SQ3.2SK2Q With 8.4T.M Rated Lifting Moment

SPECIFICATIONS FOR 4 TON CRANE TRUCK
Crane Dimension	Model	-	SQ 4T
		Max. Lifting Capacity	kg	4000
		Max. Lifting Height	m	11.5
		Working Radius/ Span	m	2.1- 7.93
		Rotation Angle	º	360
		Boom Elevation	º	3-75
		Boom Sections	Pcs	3
		Outrigger Span (Fully Extended)	mm	1989-3329
		Crane Weight	kg	1271
		Hydraulic Tank Capacity	L	30
		Max. Flow Rate of Hydraulic Oil System	L/min	25
		Hydraulic System Rated Pressure	Mpa	20
		Installation Space	mm	900
Working Parameter	The Basic Boom Length	m	3.3-11.5
		Max. Lifting Torque	T.m	8.4
		Max. Slewing Speed	r/ min	2

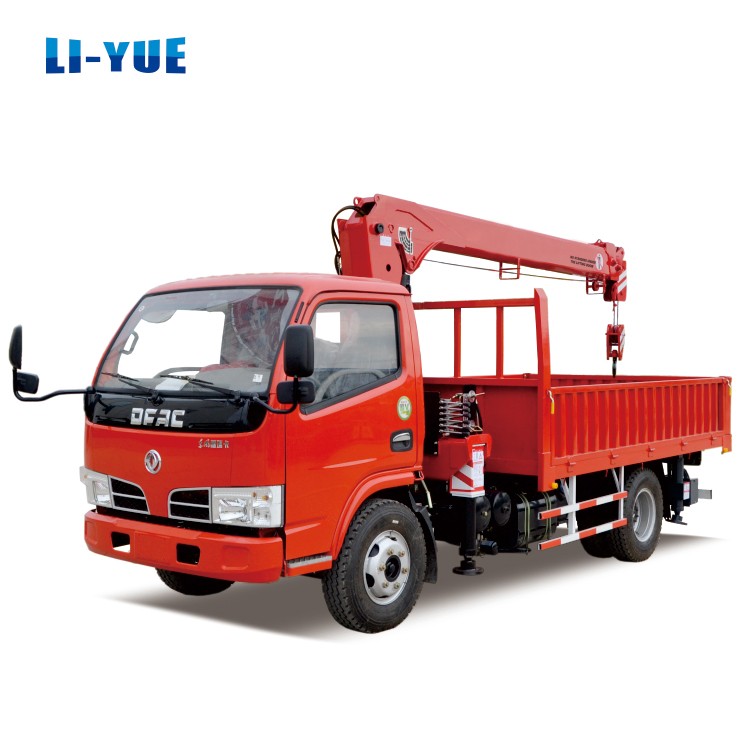

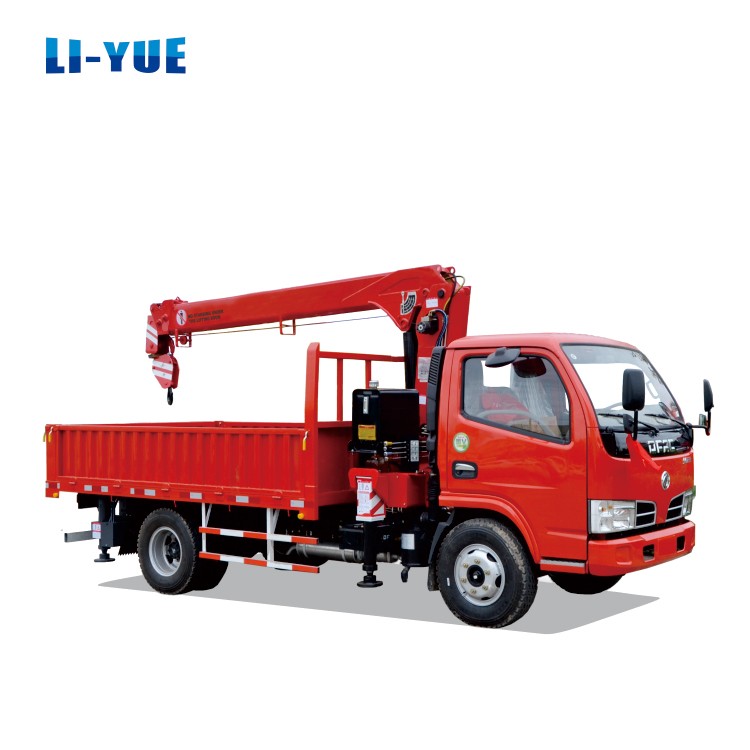

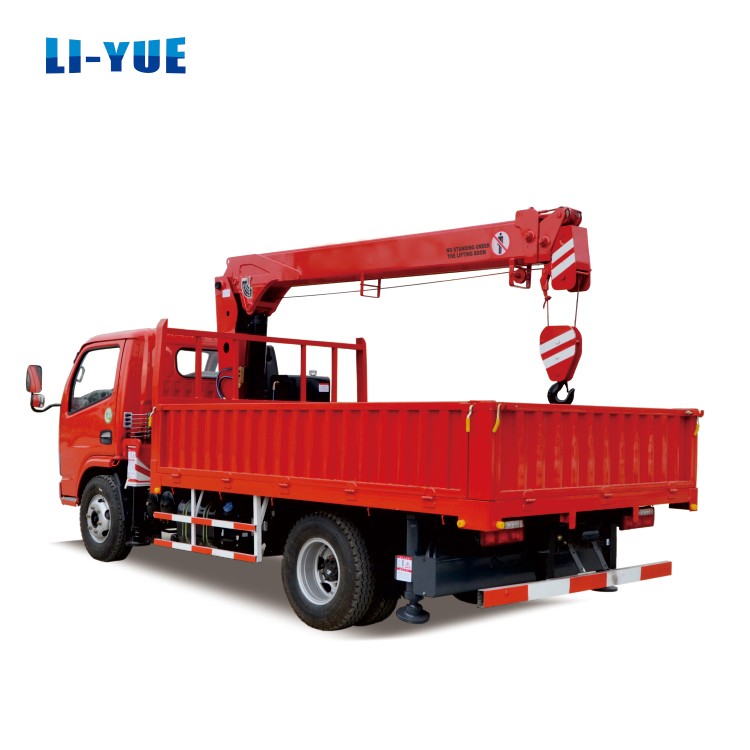

Product Show

Dongfeng Chassis and T- King Chassis are all available.

Please note, T- King chassis only has left hand steer and with engine Euro 5.

More Details

We use high quality sprare parts to ensure our product quality to meet your requirment.

Advanced Equipment

Our Advantage:

1- Large outrigger span, more stability of the operation.

2- Using six-edge type boom, the strength is greater.

3- Using European and American top hydraulic components, the crane is more reliable.

4- Oil circuit interface is chuck type, never loophole.

5- Using multi-leg control valves. Leg cylinders can be adjusted separately, more convenient and quick.

6- Using high-strength steel plate, the structure is more compact, the installation space is smaller.

7- Plate using laser cutting machine blanking, streamlined appearance has a good sense of beauty.

Packing & Delivery

---------------------------------------------Loading in Qingdao Port---------------------------------------------

The goods are packaged and reinforced by the professional team in port, to make sure the safety during the long journey.

Customer Visiting

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

FAQ

A: Are you the manufacturer?
Q: Yes, we are the manufacturer.

A: What kind of truck cranes do you produce?
Q: Truck crane and truck mounted crane from 2.5T to 25T.

A: What kind of truck chassis do you use?
Q: Dongfeng, T-King truck and so on.

A: What are your payment methods?
Q: T/ T, L/ C, West Union, Paypal, Money Gram, Alipay and so on.

A: What is the delivery time?
Q: Within 20 days after we receive the deposit.

A: What's the mode of transportation?
Q: Normally by 40 feet open top containers, flat rack container or bulk vessel.

A: How long is the warranty?
Q: 1 Years warranty service.

A: How long is the history of your factory?
Q: LIYUE has been in producing truck cranes since 1980.
